Spectrometers
Our spectrometers are robust and versatile instruments, ideal for OEM integrations and core research. Our compact and high resolution spectrometers have been used to support techniques that include: Transmission, Reflectance, Emission, Fluorescence, and Raman analysis for investigations into the ultraviolet, visible, and near infrared regions. Some of the applications include: LED irradiance, Laser classification, color monitoring, and materials sorting.
We offer a comprehensive range of Spectrometer accessories and software to make OEM integrations and complex experiments easier. We also provide Stable UV and Broadband light sources, reflectance probes, transmission stages, and collimating lenses. Don’t see the perfect device? We can design and manufacture custom solutions for high-volume OEM applications, in collaboration with our partner Photon Control R&D Ltd. We’ll do this all in our ISO 9001:2008 certified facilities and cleanrooms to ensure the highest standard of quality.
| SPM-001-(X) | SPM-001-NIR1700S | SPM-001-NIR2500W | |
|---|---|---|---|
| Range | 190-1100nm | 900-1700nm | 900-2500nm |
| Dectector | Toshiba TC1304 | Hamamatsu G9204 | Hamamatsu G9208 |
| Dectector Size | 3648 Pixel Array | 512 Pixel InGaAs | 512 Pixel InGaAs |
| ADC | 12 bit | 16 bit | 16 bit |
| SPM-002-(X) | SPM-002-(X)H | SPM-002-(X)T64 | SPM-002-NIR1700 | |
|---|---|---|---|---|
| Range | 190-1100nm | 190-1100nm | 190-1100nm | 900-1700nm |
| Dectector | Toshiba TCD1304 | Toshiba TCD1304 | Hamamatsu S11071 | Hamamatsu G9204 |
| Dectector Size | 3648 Pixel Array | 3648 Pixel Array | 2048x64 Pixel Array | 512 Pixel InGaAs |
| ADC | 12 bit | 16 bit | 16 bit | 16 bit |
| Connection | USB 1.1 | USB 2.0 | USB 2.0 | USB 2.0 |
Click headers to expand/collapse the different spectrometer models.
SPM-001
The SPM-001 optical bench is a proprietary 3 dimensional bench designed to provide exceptional optical resolution. Combined with a Toshiba TCD1304 detector, this 150mm bench can provide sub-nanometer resolution making it an economical tool for laser classification and high resolution spectroscopy. In this bench, we also offer TE cooled InGaAs Hamamatsu detectors capable of measuring out to 2.5μm.
All of our SPM-001-X spectrometers come with a standard 10μm slit, a CCD detector, 12bit ADC, and have exposure time ranges and temperature tolerances of 10-65s and -10 to 55C respectively. The SPM-001-NIR models come in a 140mm optical bench with a standard 50μm slit, 16bit ADC, and have exposure time ranges of 10μs to 10s. These spectrometers are fiber coupled with the choice of either SMA or FC connectors. A fiber cable and software are included with the purchase of each spectrometer.
Common Specifications
Wavelength Range (nm) 350-2500
Interface USB 2.0
Power Requirements 10-14 VDC, 300-1200 mA @12VDC
Weight (g) 1100 for SPM-001 (N-M) (g) 1400 for SPM-001 NIR 1700S / 2500W
1. Slit sizes of 10,25,50 and 100um are available
2. SMA or FC fiber input available on all models
3. Custom spectrometer wavelength ranges and slit sizes are available upon request.
| SPM-001- | M | N | NIR1700S | NIR2500W |
|---|---|---|---|---|
| Spectral Range* Most Common Ranges |
190-1100nm 740-860nm* |
190-1100nm 680-920nm* |
900-1700nm | 900-2500nm |
| Blaze Wavelength | choice | choice | 1050nm | choice |
| Resolution 10μm | 0.12/0.18nm** | 0.24/0.30nm** | - | - |
*Center wavelength can be factory configured within the 120 nm range for the SPM-001-M and the 240 nm range for the SPM-001-N up to 1100nm.
**30C° maximum to maintain minimum detector temperature.
Scroll the tables horizontally when viewing on small screens to read all of the data.

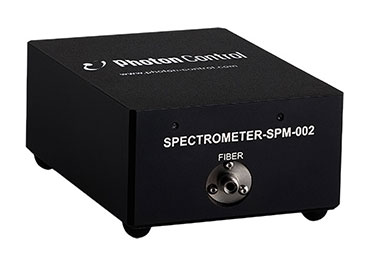

SPM - 002 Compact Spectrometer
The SPM-002 optical bench is a proprietary crossed Czerny turner spectrometer; designed to be robust, open, and versatile. We offer a variety of models to cover a wide range of measurement needs. The SPM-002-X is designed to be an economical choice for price sensitive integrations or education. The SPM-002-XH is our tuned up model of the SPM-002-X, featuring an upgraded electronics package and faster communication options. Both the SPM-002-X and SPM-002-XH use the Toshiba TC1304 CCD, and are well suited for colour and plasma monitoring; to name just a couple applications!
The SPM-002-XT64 spectrometer includes the highly sensitive, 2048×64 pixel, back thinned, Hamamatsu S11071. This CCD features anti-blooming, and is ideally suited for sensitive reflectance applications and process monitoring; such as fruit sorting.
The SPM-002-NIR1700 is the perfect balance between performance and cost. It features the powerful Hamamatsu G9204 in our sensitive, compact, and cost efficient optical bench making it a valuable choice for SWIR detection.
Common Specifications
Wavelength Range (nm) 190-1700
Dimensions (mm) 101.5 x 90 x 54.3
Interface USB 2.0
Weight (g) 500
Fiber Input SMA
Power Requirments 10-14 VDC, 300mA @ 12VDC and / or USB Powered
1. Slit sizes of 10um,25um,50um,100um, and 200um are available
2. SMA or FC fiber input available on all models
| SPM-002- | A / AH | B / BH | C / CH | D / DH | E / EH | F / FH | NIR1700 |
| Spectral Range | 400-700nm | 190-400nm | 350-1000nm | 200-850nm | 200-1090nm | 500-1000nm | 900-1700nm |
| Blaze Wavelength | 500nm | 250nm | 500nm | 300nm | 300nm | 750nm | 1050nm |
| Resolution 10μm* | 0.4/0.8nm | 0.4/0.6nm | 0.7/1.9nm | 0.7/1.9nm | 1.1/2.5nm | 0.7/1.4nm | - |
| Resolution 25μm* | 0.6/1.0nm | 0.6/0.8nm | 1.2/2.1nm | 1.2/2.1nm | 1.9/3.0nm | 1.2/1.8nm | 3.4/4.0nm |
| Resolution 50μm* | 0.7/1.0nm | 0.7/0.9nm | 1.4/2.2nm | 1.4/2.2nm | 2.1/3.1nm | 1.4/1.9nm | 5.0/8.0nm |
| Resolution 100μm* | 1.4/1.6nm | 1.4/1.5nm | 2.8/3.3nm | 2.8/3.3nm | 4.2/4.8nm | 2.8/3.1nm | 11.4/11.7nm |
| Resolution 200μm* | 2.8/2.9nm | 2.8/2.9nm | 5.6/5.9nm | 5.6/5.9nm | 8.4/8.7nm | 5.6/5.8nm | - |
| SPM-002- | BT64 | CT64 | DT64 | ET64 |
| Spectral Range | 190-400nm | 350-1000nm | 200-850nm | 200-1090nm |
| Blaze Wavelength | 250nm | 500nm | 300nm | 300nm |
| Resolution 10μm* | 0.5/0.7nm | 1.0/2.0nm | 1.0/2.0nm | 1.5/2.7nm |
| Resolution 25μm* | 0.8/1.0nm | 1.7/2.4nm | 1.7/2.4nm | 2.5/3.4nm |
| Resolution 50μm* | 1.1/1.2nm | 2.2/2.8nm | 2.2/2.8nm | 3.3/4.0nm |
| Resolution 100μm* | 1.4/1.5nm | 2.8/3.3nm | 2.8/3.3nm | 4.2/4.8nm |
| Resolution 200μm* | 2.8/2.9nm | 5.6/5.9nm | 5.6/5.9nm | 8.4/8.7nm |
*Measured with 10 um slit
Light Sources
Light Source
| Model | Spectral Range (nm) | Lifetime (MTBF, hrs) | Fiber Connector | Operating Temp. Range (C°) | Power Supply | Dimensions (mm) | Weight (g) |
| SPL-2H Tungsten-Halogen | 350-2500 | 10000 | SMA | -10 to 60 | 12 VDC, 650mA | 116x40x43 | 165 |
| SPL-1DH Deuterium-Halogen | 200-1100 | D2-1000; Halogen2000 | SMA | 5 to 35 | 12 VDC, 650mA | 118x81x47 | 385 |
| SPL-HGAR Mercury-Argon | 250-1000 | 3000 | SMA | 10 to 40 | 12 VDC, 650mA | 145x62x23 | 135 |
Spectrometer Accessories
Spectroscopy Patch Cords and Sampling Accessories
Photos Reflectance Probes, Cuvette Holder, Breakout Board, etc
| Item | Description |
| SPA-COU | Cuvette Holder, 4 way |
| SPA-RP-SMA-200-U | Reflectance probe, 6 around 1, 200um core UV/Vis fibers, SMA connectors |
| SPA-RP-SMA-200-V | Reflectance probe, 6 around 1, 200um core Vis/NIR fibers, SMA connectors |
| SPA-COL-UVI-SMA | Light Collector, UV/Vis/IR, SMA |
| CWA-SMA-62-V-2 | Fiber Optic Patch Cord - SMA 905 connector - 62.5 micrometer core - VIS/NIR - 2m |
| CWA-SMA-100-V-2 | Fiber Optic Patch Cord - SMA 905 connector - 100 micrometer core - VIS/NIR - 2m |
| CWA-SMA-200-V-2 | Fiber Optic Patch Cord - SMA 905 connector - 200 micrometer core - VIS/NIR - 2m |
| CWA-SMA-400-V-2 | Fiber Optic Patch Cord - SMA 905 connector - 400 micrometer core - VIS/NIR - 2m |
| CWA-SMA-600-V-2 | Fiber Optic Patch Cord - SMA 905 connector - 600 micrometer core - VIS/NIR - 2m |
| CWA-SMA-100-U-2 | Fiber Optic Patch Cord - SMA 905 connector - 100 micrometer core - UV/VIS - 2m |
| CWA-SMA-200-U-2 | Fiber Optic Patch Cord - SMA 905 connector - 200 micrometer core - UV/VIS - 2m |
| CWA-SMA-400-U-2 | Fiber Optic Patch Cord - SMA 905 connector - 400micrometer core - UV/VIS - 2m |
| CWA-SMA-600-U-2 | Fiber Optic Patch Cord - SMA 905 connector - 600 micrometer core - UV/VIS - 2m |
| SPA-COL-UVI-FC | Light Collector, UV/Vis/IR, FC |
| SPA-WREF-1 | White Reference Standard |
| SPA-PL-COUV-1 | Plastic Cuvettes, 1cm path, 10pack |
| SPA-RP-HOLD-1 | Reflectance probe holder |
| SPA-BREAKOUT-1 | Breakout circuit board for spectrometer interface connector |
| CWA-FC-62-V-2 | Fiber Optic Patch Cord - FC connector - 62.5 micrometer core - VIS/NIR - 2m |
| CWA-FC-100-V-2 | Fiber Optic Patch Cord - FC connector - 100 micrometer core - VIS/NIR - 2m |
| CWA-FC-200-V-2 | Fiber Optic Patch Cord - FC connector - 200 micrometer core - VIS/NIR - 2m |
| CWA-FC-400-V-2 | Fiber Optic Patch Cord - FC connector - 400 micrometer core - VIS/NIR - 2m |
| CWA-FC-600-V-2 | Fiber Optic Patch Cord - FC connector - 600 micrometer core - VIS/NIR - 2m |
| CWA-FC-100-U-2 | Fiber Optic Patch Cord - FC connector - 100 micrometer core - UV/VIS - 2m |
| CWA-FC-200-U-2 | Fiber Optic Patch Cord - FC connector - 200 micrometer core - UV/VIS - 2m |
| CWA-FC-400-U-2 | Fiber Optic Patch Cord - FC connector - 400 micrometer core - UV/VIS - 2m |
| CWA-FC-600-U-2 | Fiber Optic Patch Cord - FC connector - 600 micrometer core - UV/VIS - 2m |
| CWA-FC-SMF-V-2 | Fiber Optic Patch Cord - FC connector - SMF 28 fiber - VIS/NIR - 2m |
Download Spectroscopy Accessories
